The Crucial Role of Metal-Clad Switchgear in Safeguarding Electrical Power Systems 4

A reliable and safe supply of electric power remains fundamental for industries and commercial facilities to function productively. However, the electrical infrastructure powering heavy-duty equipment in factories and large buildings is constantly vulnerable to faults from lightning strikes, rodents, insulation failure, or simple human errors. These abnormalities can trigger disastrous consequences like fires, equipment damage running into millions, and even fatal electric arcs blasting among workers.

Safeguarding vital electric distribution networks against such threats from supply sources is a crucial first step. Metal-clad switchgear serves this very purpose by strategically containing dangerous fault currents and localizing their effects through various built-in protective measures.

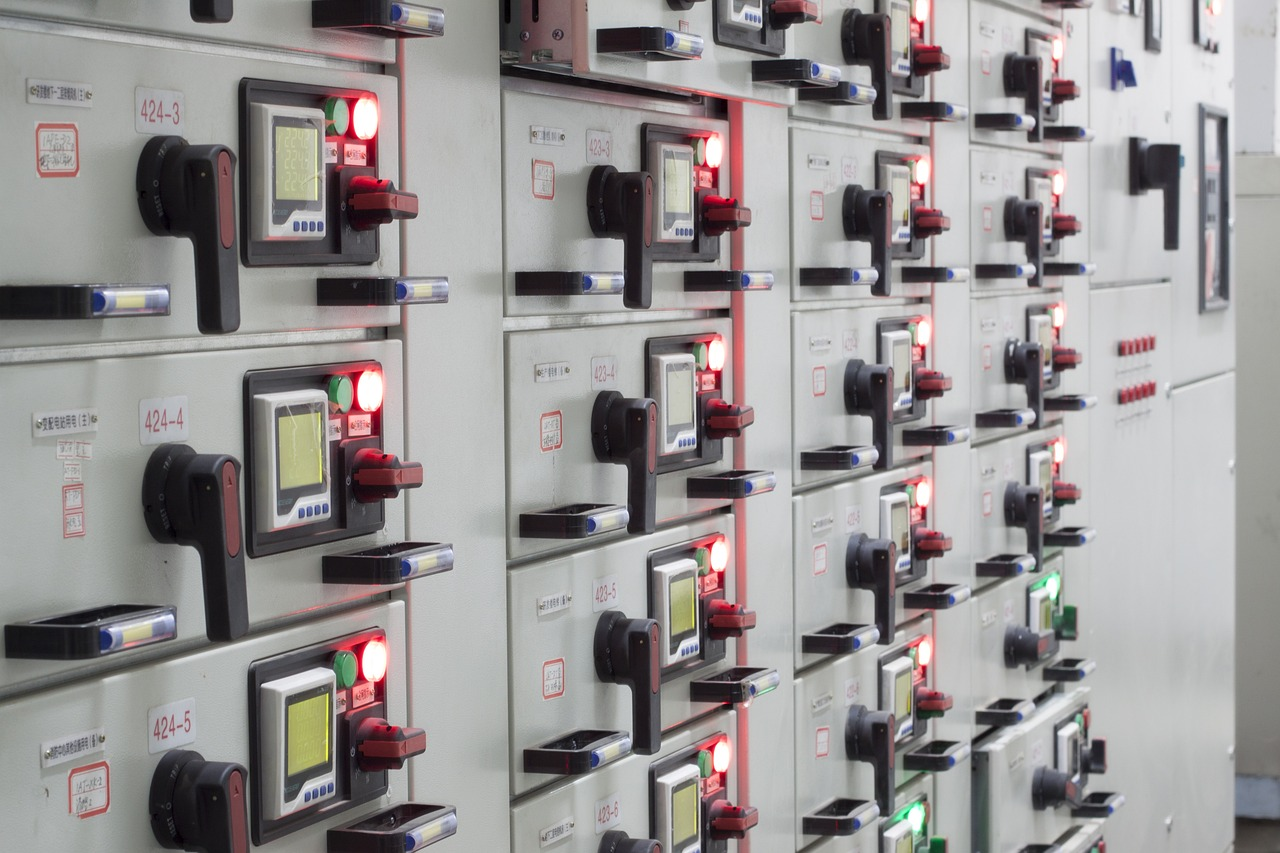

What is Metal-Clad Switchgear?

Metal-clad switchgear refers to heavy-duty electrical equipment comprised of high-voltage circuit breakers, busbars, instrument transformers, and auxiliary devices – all enclosed in grounded metal enclosures made of steel plates. The metal enclosures protect the equipment from harsh conditions and contain faults like electric arcs to prevent equipment damage or injury.

Unlike open designs and cubicle switchgear, metal-clad switchgear has all the components segregated into compartments enclosed by the metallic grounded casing. This type of switchgear can handle higher voltages between 15kV and 38kV and continuous currents above 2000A, making it well-suited for large facilities like manufacturing plants, hospitals, data centers, and commercial buildings.

Key Features of Metal-Clad Switchgear

Metal-clad switchgear boasts several key features that contribute to its effectiveness and reliability within an electrical power system:

Modular Design:

Metal-clad switchgear maintains a modular design, allowing for simple configurations to suit specific application needs in an electrical network. Multiple switchgear bays can be coupled adjacent to each other with common busbar connections to expand the switchgear as per capacity requirements.


Segregating key components into different grounded and partitioned sections with physical and electrical barriers minimizes equipment damage during faults. Components like breaker compartments and cable sections remain protected from hazards in other compartments.

High Voltage Ratings:

Enclosed metal assemblies permit optimal insulation clearances and separation required for handling medium voltages up to 38kV, such as circuits from generators or transformers. Suitable terminations and ample space for cable handling exist for these voltage levels.

Arc-Resistant Construction:

Arc blast shields, venting ports, and arc chutes facilitate the safe venting of arc flashes, fast dissipation of ionized gases, and containment of dangerous arc blast pressure. This allows for considerably less personal protective equipment during switchgear maintenance and improves safety.

Safety Interlocks:

Heavy-duty industrial interlocks on doors, removable panels, and various indoor & outdoor components of metal-clad switchgear avoid unauthorized access to energized primary circuits. This prevents accidental contact with live parts during operation.

Benefits of Metal-Clad Switchgear

The implementation of metal-clad switchgears that provide protection has advantages for power system operators and users:

Enhanced Safety:

Metal-clad switchgear provides damage containment and arc flash personal protection far superior to open-type switchgear or motor control centers. Segregation and modular compartments additionally limit the spread of faults within adjacent sections, improving safety for both operations personnel and equipment.

Increased Reliability:

The grounded metal enclosures’ superior dielectric properties support reliable insulation for indoor medium-voltage applications. Compartmentalization also restricts damage only to the affected compartment during switchgear failures, keeping the remaining sections unaffected and functional. This ensures minimal downtime and equipment redundancy when required.

Reduced Maintenance Costs:

Since most maintenance checking tasks are restricted to housing front panels and do not require opening active breaker compartments, troubleshooting remains convenient and requires considerably less staff protection equipment. Also, the modular design allows simple plug-in unit replacement after failures rather than complex switchgear repairs onsite.

Improved Space Efficiency:

Metal-clad switchgear allows for a considerably smaller footprint than conventional open-type switchgear. This compactness becomes useful when space remains constrained for switchyards and facility substations containing other equipment like transformers and capacitor banks.


Metal-clad switchgear often utilizes drawout circuit breakers which can be easily isolated and then unmounted via trolleys for convenient off-site inspection, testing or maintenance. This offers time savings over disruptive on-site tasks of testing protection relays or breaker control firmware needing extensive disassembly.

Future Expansion:

The modular metal-clad design assists seamless capacity expansion of the switchgear lineup whenever there arises a need to upgrade protection equipment to match increased load demands. Existing busbar extensions with cable terminations facilitate such upgrades faster without much hassle.

Key Considerations for Selecting Metal-Clad Switchgear:

When choosing metal-clad switchgear, several factors need careful consideration to ensure optimal performance and compatibility with specific applications. These factors include:

Voltage and Current Ratings:

Appropriate voltage classes between 15 to 38 kV with adequate withstand strength and corresponding current ratings above 2000 A need to match the incoming supply lines and intended loads downstream. This becomes vital to avoid overload failures under peak conditions.

Short Circuit Ratings:

The switchgear’s short circuit current rating should adequately exceed maximum prospective fault levels at the installation point per system analysis studies. This rating substantiates proper fault clearance without switchgear damage upon detected abnormalities.

Interrupting Capability:

Fault clearance times and successful interruptions of switchgear circuit breakers at rated voltages should align with the network utility’s requirements specified through maximum allowable tripping durations according to grid codes.

Utility Compatibility:

The network utility needs to verify the acceptable compatibility between the fault-detecting meters, tripping logics, and breaker-closing pertinent installed switchgear prior to commissioning. This is mandatory for parallel connection to the grid when generators transition between utility and internal generation.

Dimensions and Layout:

When ordering switchgear, careful measurement of the space intended for it and a detailed examination of the site layout are necessary to allow hassle-free installation and future expansion if required. Proper transport access for moving switchgear also needs consideration.

Environmental Ratings:

Based on whether switchgear gets installed indoors or outdoors, suitable environmental enclosure ratings become essential for protection against foreign bodies, moisture, corrosive gases, and other adversities present in ambient conditions. This also accounts for door seals, gaskets, ventilation, and heating options.


Metal-clad switchgears that protect against the threats posed by short circuits and voltage spikes upstream remain an indispensable first line of defense for large facilities dependent on failproof electrical distribution from captive power sources or grid interconnection. Carefully designed metal-clad switchgear customized to site requirements continues to provide durable and safe operation of heavy industrial loads over several years through prudent segregation of components, modular configurability, and ease of expansion whenever increased power demand necessitates.
