What Is Culvert and Types of Culvert

Types of Culverts: Parts & Details

Culverts are structures that are built to allow water to flow under a roadway, railway, or other infrastructure. They come in different shapes and sizes and are made of various materials depending on their purpose and location. Culverts play a critical role in managing the flow of water in urban and rural areas and are an essential part of any drainage system.

In this article, we will explore the different types of culverts and their applications. We will discuss the advantages and disadvantages of each type, as well as the materials commonly used in their construction.


A culvert may also be a bridge or tunnel-like structure designed to allow water, vehicle, and pedestrian traffic to cross over the waterway while allowing adequate passage for the water. Culvert also acts as a water pipe or sewer that crosses under a road or railway, or trail.

Read More: What Is Plain Cement Concrete (PCC) – Materials, Uses & Grades

Types Of Culvert

There are several types of culverts that are used in construction projects, each with its own unique design and purpose.

1. Pipe Culvert

The culvert having a single number or multiple pipes are placed side by side over a base of concrete below the embankment of a railway track or roadways by fixing there both ends into masonry walls. The pipes culvert is made from R.C.C., cast iron, steel, etc. The pipe culverts are widely used, and it is very easy to install at a competitive price.

Pipe culverts are available in different shapes such as circular, elliptical, and pipe arch and their shape selection depends on on-site conditions These culverts may be used as single in number or multiple, if the width of the span or channel is greater, we will go for multiple pipe culverts.

Pipe Culvert
Pipe Culvert

Generally, they are used for a larger flow, and for an installation of a single pipe culvert, we can use the larger diameter size culvert. The range diameter of the pipe culvert is between 1 meter to 6m. The pipe culvert is chosen for smaller types of drainage works, which pass through the embankment of roads or railways.

Pipe Culvert Advantages:

  • The pipe culvert is constructed for any strength by using proper thickness, reinforcement, and mixed design.
  • Pipe culverts are inexpensive.
  • The compressive stresses and tensile stresses can easily withhold that type of culvert.
  • The water crosses from under the structure.

2. Pipe Arc Culvert

The pipe-arch culvert is a simple structure that looks like a half-circle-shaped culvert. It is suitable for larger waterway openings, but the flow should be stable where fishes can be provided with the greater hydraulic advantage they are artistic and it provides low clearance.

Pipe Arc Culvert
Pipe Arc Culvert

It is easier to install and also it is lightweight in nature. In sites condition, pipe arches are particularly useful where the headroom is limited, and as per the requirement of site condition, that type of culvert can also be provided in multiple numbers. Such a type of pipe arch culvert is useful to enhance its beautiful appearance.

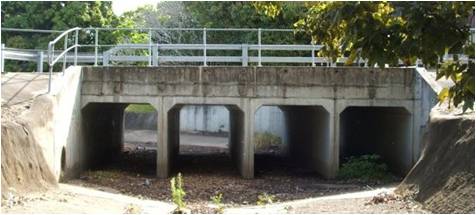

3. Box Culvert

The culverts are constructed in the form of one or more rectangular or square openings, in their top slabs. The box culverts are made up of concrete specially R.C.C. materials. They used to dispose of rainwater so, these are not useful in dry periods.

This culvert’s construction is preferable, especially in loose soil conditions, and for a larger span and also it requires a good foundation, and not be used for larger velocity.

Box Culvert
Box Culvert

For a single span of 3 m or for a double span of 6 m width, such types of culverts can be used. The thickness range of the R.C.C slab should be kept within 1.25 to 2.5 m.

There is a sudden change that occurs in the section of bending moment and shearing force due to the sinking of the culvert. Box culvert is a rigid frame and simple construction.

Pressure on the soil is reduced due to the bottom slab of a culvert. Box culvert is economical due to there is no need to provide a separate foundation and also rigidity.

4. Arc Culvert

The arch culvert involves the construction of a superstructure its superstructure consisting of one or two segmental arches consisting of brick masonry, concrete, or stone masonry is commonly used.  The arch culverts are not provided with piers to the sides of the abutment.

Arc Culvert
Arc Culvert

Advantages Of Arc Culvert:

  • The arch culvert and artificial floors both are made up of concrete.
  • The pipe arch culvert and arch culvert are similar but in the case of an arch culvert, an artificial floor is provided below the arch.
  • It is normally used for narrow passages.
  • The arch culvert is similar to the Masonry bridges.
  • The arch culvert is very easy to install.
  • The arch culvert is also made of steel but it is very extortionate.

5. Bridge Culvert

A bridge culvert acts as both bridge as well as a culvert. So, it can be term as a multi-purpose culvert. Generally, it is rectangular but if the presence of an artificial floor is not important it can be replaced by a box culvert.

Bridge Culvert
Bridge Culvert

It is generally constructed on rivers and canals hence; it serves a dual purpose. In the bridge culvert, the foundation is provided under the ground level and pavement is present on top of the culvert series.

The advantages of a bridge culvert are to allow traffic to pass on it, it is the most expensive river crossing, very strong, and has a highly strong foundation.

Read More: Types of Pavement Markings And Their Meanings | Uses

6. Metal Box Culvert

Metal Box culvert
Metal Box Culvert

Metal box culvert is an economical alternative to the bridge which is manufactured by using a standard structural plate or deep-corrugated structural plate. Metal box culvert is very easy to install and it is constructed in a short period.

They have a long service life with greater durability.

Shapes And Sizes Of Culverts

Culverts come in many sizes and shapes as follows;

  • Round
  • Elliptical
  • Flat-bottomed
  • Open-bottomed
  • Pear-shaped
  • Box-like constructions

Parts of A Culvert

 The major culvert parts are as follows;

Components Of Culvert
Parts of A Culvert
  • Pavement
  • parapet
  • Headwall
  • Dingwall
  • Crown
  • Apron
  • Road embankment
  • Culvert inlet
  • Culvert pipe
  • Culvert outlet
  • Culvert foundation
